Case Studies

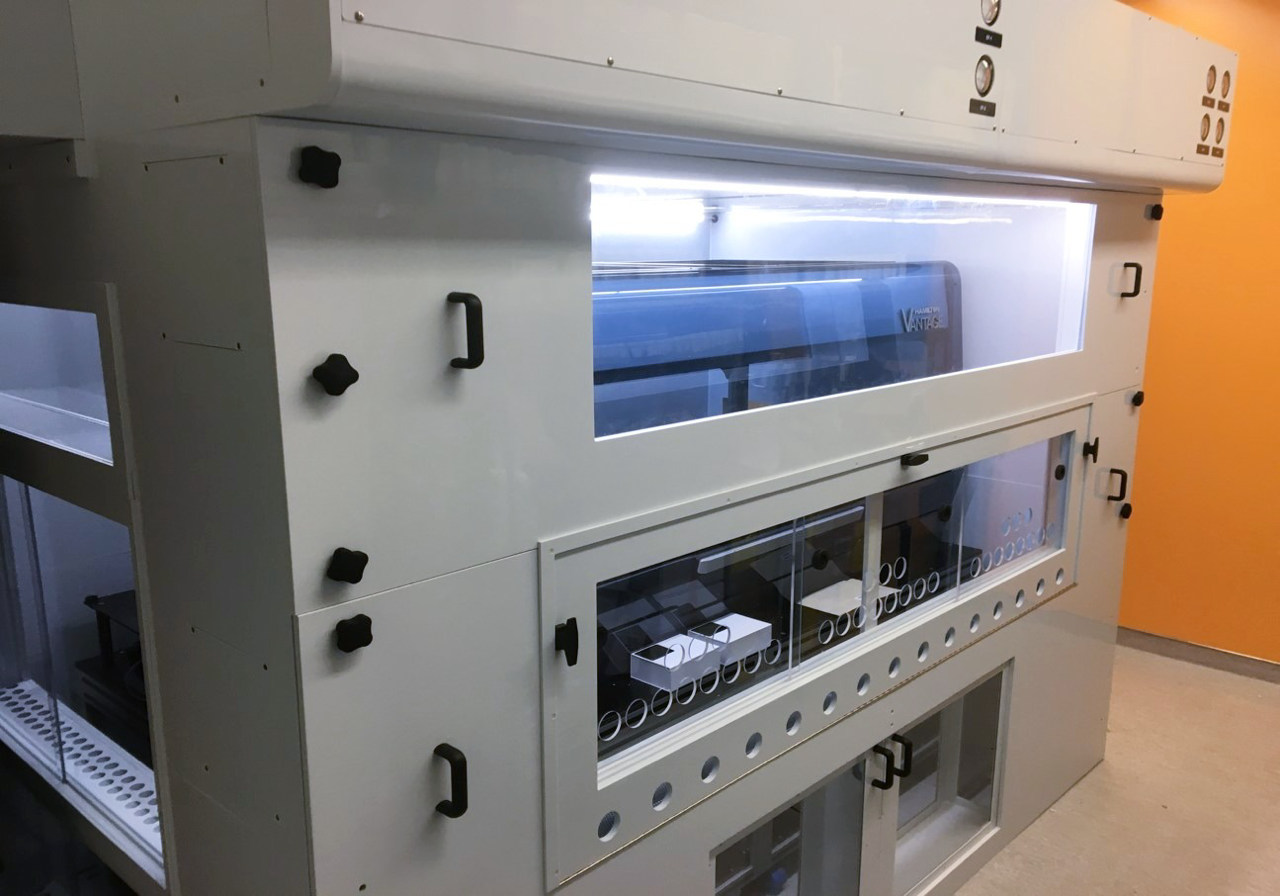

Class II Walk-in Enclosure

Santa Monica, California

Project Details

Constructed out of DFMZ 1.5 wall system, anodized aluminum frame assembly c/w insert panels 3/16" clear acrylic inserts in the upper section and 3/16" solid white polypropylene in the lower section.

Digital control panel, 5.7 digital touch screen to control switches of lights and fans. Includes also alarm system and controls speed for FFMS.

CLASS II Type A2 air flows offering personnel, product (ISO-5) & environmental protection.

Supply and exhaust HEPA filters provide minimum 99.99% efficiency at 0.3 microns.

Removable front panel allowing for quick HEPA filter maintenance.

Ergotron Monitor mounting arm, to the outside of the enclosure.

Duplex electric outlets, mounted inside of the enclosure.

Networks and wired cables pass through.

LED light fixtures.

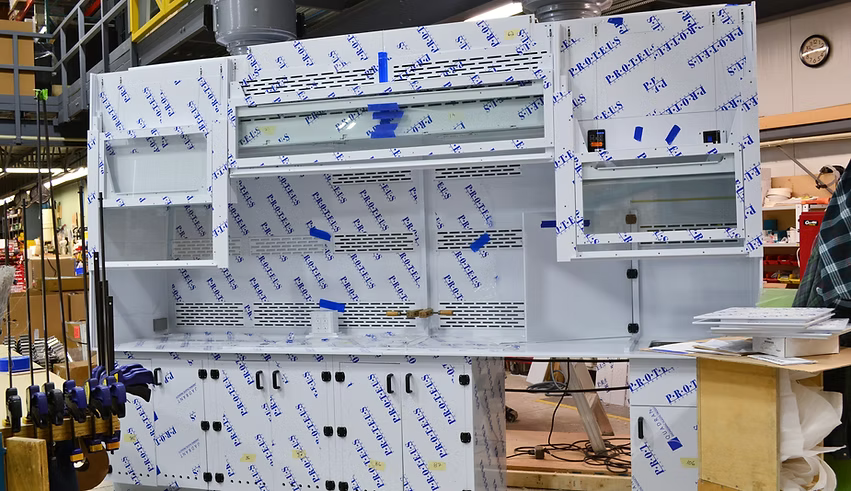

MEH-12-C-H Modular Extraction Hood

Edmonton, Alberta

Project Details

3 Vertical sliding face shields (suggested at 4' wide each) with laminated safety glass insert panels, fully counterbalanced with 32" maximum opening and a preset sash stop at 18" height

Polypropylene hanging rack above sink to hang evidence/samples for drying

Undermount stainless steel utility sink with drain

Polypropylene work surface at approx. 144" wide by 30" deep with integral spill lip to contain minor spills.

LED task lighting for the work zone c/w ON/OFF switch

Airflow alarm system to monitor exhaust airflow at duct

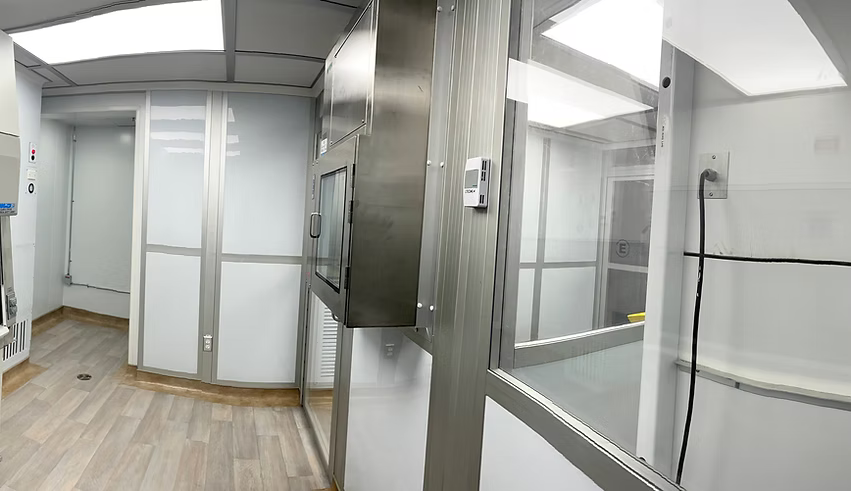

4 Suite Cleanroom

Ontario, Canada

Project Details

Includes: a non-hazardous gowning room, a non hazardous cleanroom, a hazardous gowning room, and a hazardous cleanroom.

DFMZ pass-through: Transfer products and equipment in and out of your cleanroom and eliminate unwanted contamination.

Temperature Monitoring: Relative humidity and temperature monitoring

Fan filter units: DA4-1HSL is our most popular fan-filter unit. The new “slim line” housing was designed to fit into tight ceiling spaces, where our older model and many competing models could not be installed.

Digital Gauge Panel to include the following: digital touch screen to monitor relative static room pressure, temperature, relative humidity, and Hepa filter loading, visual alarm system for Temp/RH and visual & audible room side alarm for negative room pressure

Air return: Adjustable, surface mounted, white polypropylene. Relative humidity and temperature monitoring

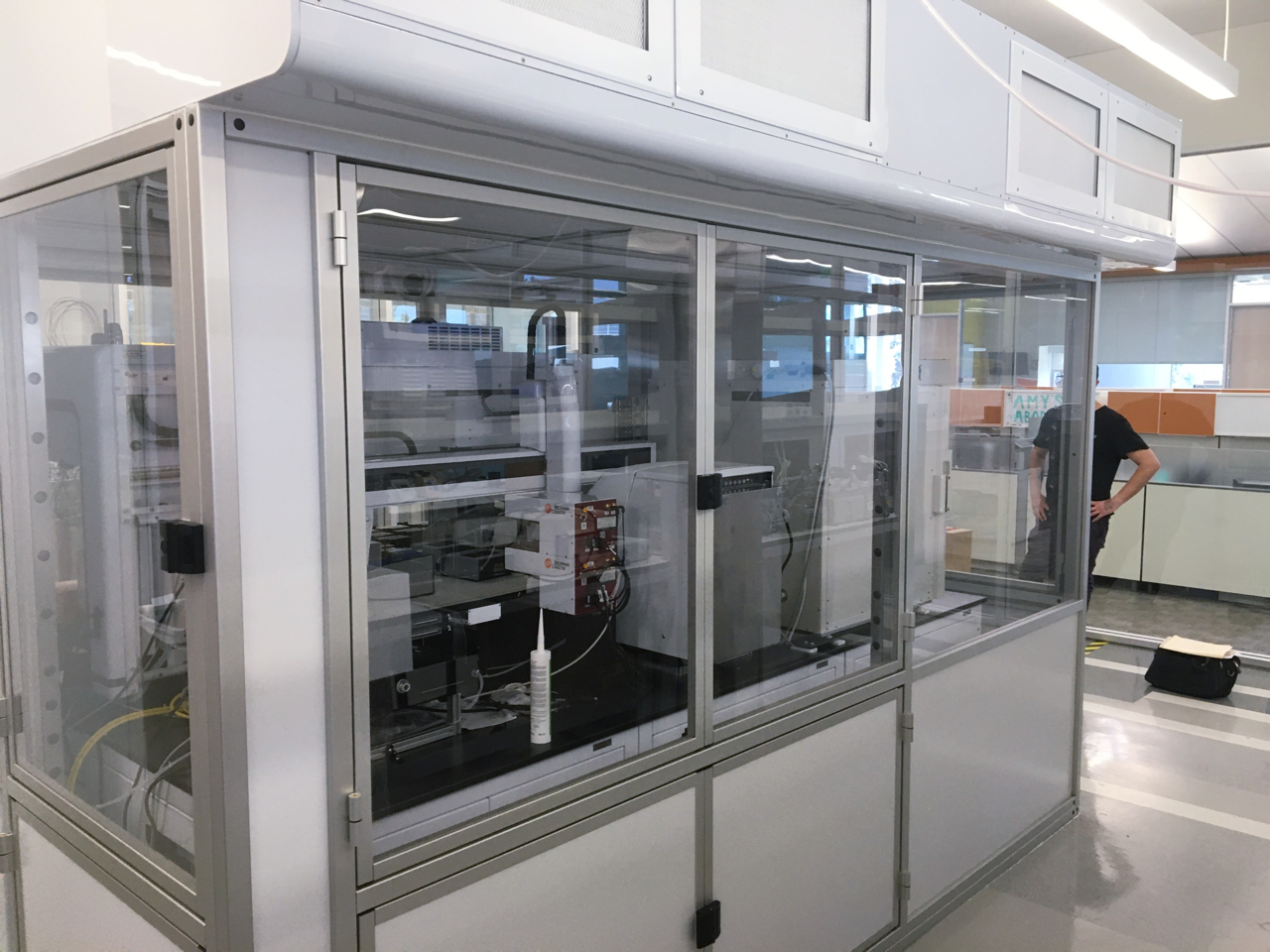

Class II Type A2 Biological Safety Enclosure

Seattle, Washington

Project Details

Meets containment performance for CLASS II Type A air flows offering personnel, product (ISO-5) & environmental protection.

Hinged doors and wall panels manufactured from clear acrylic and white polypropylene panels set into an anodized aluminum frame system.

Wall panels feature adjustable grilles to allow for proper balancing of enclosure.

5.7” PLC/HMI with 0-10VDC power supply for fan control, on screen monitoring of filter loading.

DFMZ wall system, clear anodized aluminum framework. Manual access swing doors with latch hardware and closers.

Doors and wall panels equipped with clear acrylic in upper and white polypropylene.

Digital control panel for lights and fans. Equipped speed controls for FFMS.

Poly Walk-in Enclosure

Toronto, Ontario

Project Details

Digital display touch pad.

Side viewing window: 3/8" clear acrylic panel.

Duplex electrical outlet.

Light fixture: LED, T5 single tube, 46"

Large access panel for digital control panel.

4 ports USB 2.0

Upper side access window: 3/8 clear acrylic panel, lockable in sliding position.

Lower side access window: 3/8" clear acrylic panel, lockable in sliding position.
